How to Make Insulating Fire Bricks

Insulating fire bricks (IFBs) are specially designed bricks used in high-temperature environments, including kilns, furnaces, wood stoves, and fireplaces. Their primary function is to provide thermal insulation, keeping heat inside these systems and enhancing energy efficiency. Due to their lightweight nature and excellent heat retention, insulating fire bricks play a crucial role in industries like metalworking, ceramics, and home heating. In this article, we’ll guide you through the process of making your own insulating fire bricks, ensuring you understand both their composition and how to craft them effectively.

1. What are Insulating Fire Bricks?

Composition and Properties

Insulating fire bricks are typically composed of fire clay, perlite or vermiculite, silica sand, and sometimes lime or cement to enhance bonding. These materials give the bricks their low density and excellent thermal insulation properties, making them ideal for use in environments that require high heat resistance. Unlike standard fire bricks, which are designed to withstand heat without significant thermal loss, insulating fire bricks are specifically engineered to minimize heat dissipation and enhance energy efficiency.

Differences Between Standard Fire Bricks and Insulating Fire Bricks

The key difference between insulating fire bricks and standard fire bricks lies in their composition. While standard fire bricks are made to withstand extremely high temperatures without degrading, insulating fire bricks are designed to be lightweight and have low thermal conductivity. This means they not only resist high heat but also trap it, helping maintain heat within the chamber, furnace, or stove.

Uses of Insulating Fire Bricks

Insulating fire bricks are essential in many applications that require consistent, high heat. They are used in:

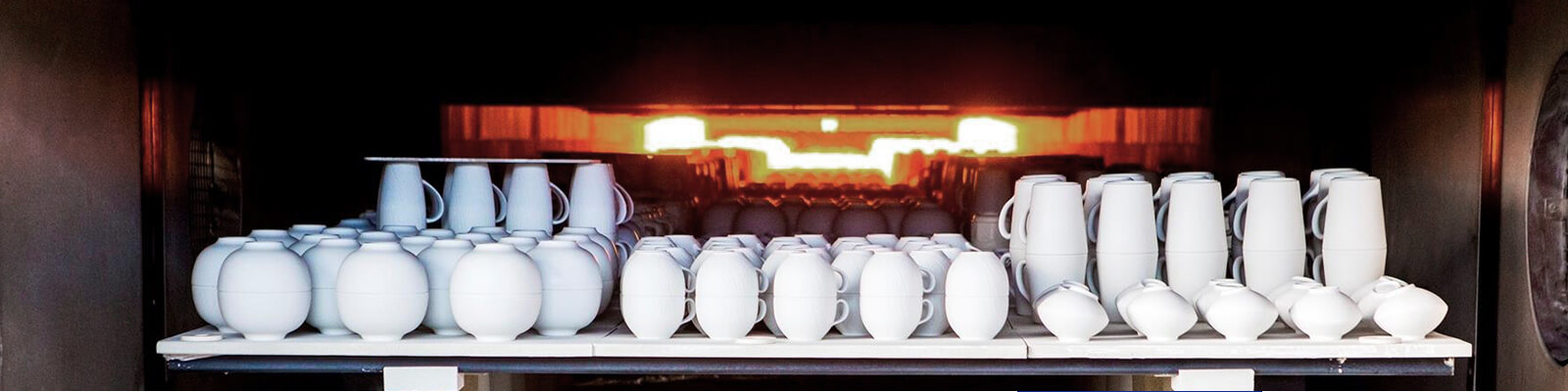

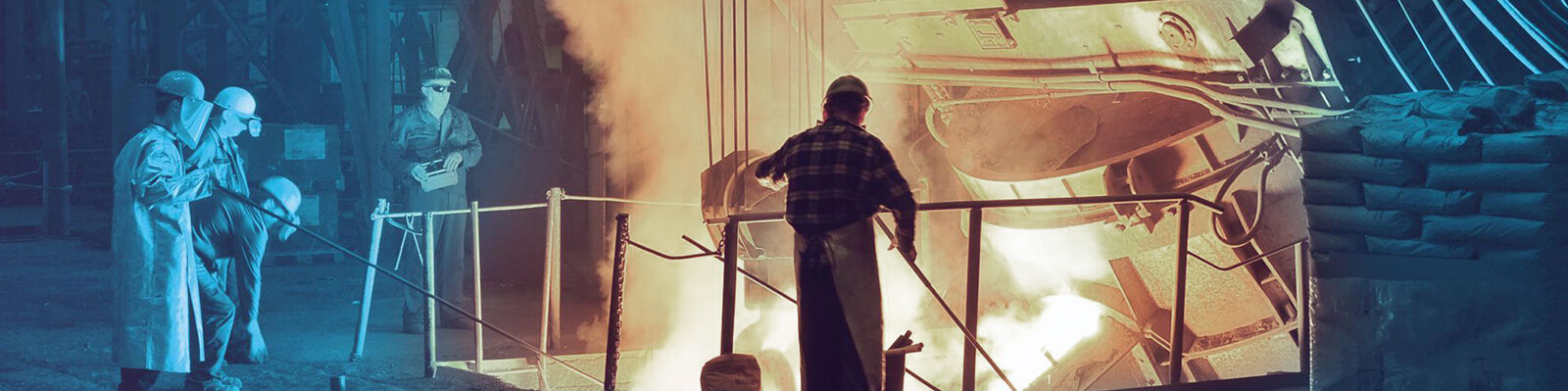

Furnaces and kilns for metal casting and pottery.

Fireplaces and wood stoves to improve heat efficiency.

Ovens and heating systems to maintain optimal temperature for cooking or industrial processes.

Their role in heat management and energy conservation is vital, as they reduce heat loss and prevent excessive energy consumption.

2. Materials Needed to Make Insulating Fire Bricks

Basic Materials

To make insulating fire bricks, you’ll need the following materials:

Fire Clay (or High Alumina Clay): This provides the base for the bricks, offering heat resistance and stability.

Perlite or Vermiculite: These are lightweight insulating materials that reduce the brick’s weight and improve its thermal properties.

Silica Sand: Added to improve strength and enhance the brick’s resistance to high temperatures.

Lime or Cement (optional): These may be added to help bind the materials together and improve the strength of the bricks.

Tools and Equipment

The tools and equipment required include:

Mixing Container: A large wheelbarrow, tub, or other container for mixing the materials.

Trowel or Mixing Tool: For stirring and blending the materials thoroughly.

Molds: To shape the brick mixture into uniform blocks.

Kiln or Furnace: Required to fire the bricks at a high temperature to sinter and solidify the material.

Safety Gear: Always wear gloves, goggles, and a mask when working with high-temperature materials to ensure safety.

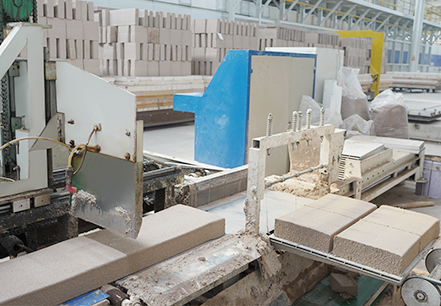

3. Step-by-Step Guide to Making Insulating Fire Bricks

Step 1: Prepare the Materials

Before starting, gather all the necessary materials. Measure out the correct amounts of fire clay, perlite or vermiculite, silica sand, and optional additives (like lime or cement). It’s important to ensure accurate measurements to maintain the correct mix ratio for optimal performance.

Step 2: Mix the Ingredients

In your mixing container, combine the fire clay with the insulating material (perlite or vermiculite) and silica sand. Gradually add water to the mixture until it reaches a thick, dough-like consistency. The mixture should hold together but remain malleable, making it easy to shape into bricks.

Step 3: Shape the Bricks

Using molds, form the mixture into brick-sized blocks. If you don’t have molds, you can also hand-shape the bricks, ensuring that they are of uniform size and thickness. Consistency is key here for proper firing and insulation performance.

Step 4: Dry the Bricks

Once shaped, allow the bricks to dry completely. Place them in a well-ventilated area for at least 24 to 48 hours to remove excess moisture. This step is crucial to prevent cracks or deformation during the firing process.

Step 5: Firing the Bricks

Once the bricks are dry, it’s time to fire them. Place the dried bricks in a kiln or furnace and fire them at a temperature around 900°C to 1000°C. This sintering process will solidify the material and enhance the brick’s heat resistance. After firing, allow the bricks to cool gradually to avoid cracking.

4. Testing and Quality Control

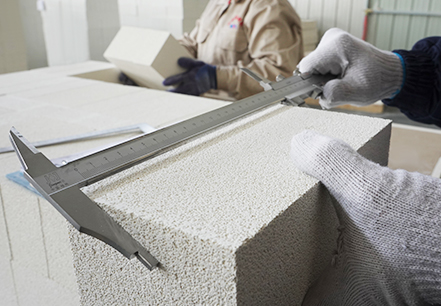

Check for Cracks and Durability

After the bricks have cooled, inspect them for any visible cracks or weak spots. Cracks may indicate problems during the drying or firing process, such as excessive moisture or uneven heating. Ensure the bricks are structurally sound before using them in high-temperature applications.

Testing Thermal Insulation

To ensure your bricks meet the required thermal insulation standards, conduct a heat retention test. This involves subjecting the bricks to high temperatures and measuring their ability to retain heat without significant loss. The bricks should not break down or lose shape under high heat conditions.

5. Homemade Insulating Fire Bricks or Looking for Professional Suppliers

While making your own insulating fire bricks can be a rewarding and cost-effective project, it’s not always practical or feasible for every situation. For larger-scale projects or when consistency and quality are paramount, turning to professional suppliers is a viable option.

When to Make Your Own Refractory Bricks

Making your own insulating fire bricks is ideal for small-scale or experimental projects, such as custom kilns or stoves. It’s also a great way to learn about the materials and properties of fire bricks.

When to Look for a Professional Supplier

If you require high-quality, consistent bricks in large quantities, or if you lack the equipment to fire the bricks at the required temperature, purchasing from a professional supplier is recommended. A reputable supplier will ensure that the bricks meet stringent thermal and durability standards.

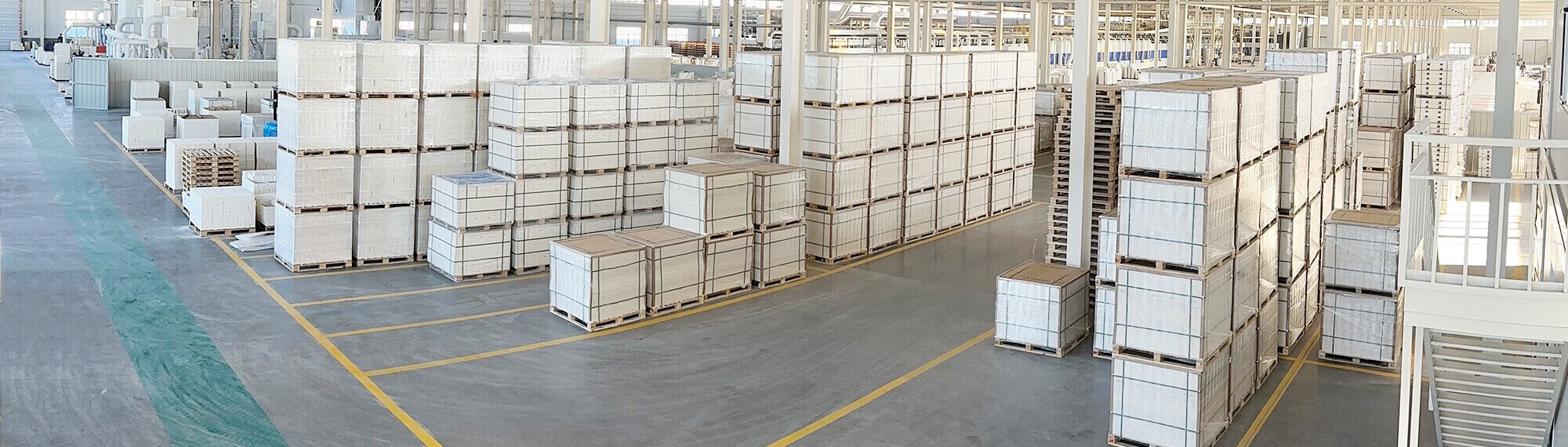

WAM: A Leading Insulating Refractory Brick Manufacturer

WAM is one of the world’s leading manufacturers of insulating refractory bricks, offering top-tier products suitable for industrial, residential, and commercial applications. With advanced manufacturing techniques, WAM ensures high-quality, durable, and thermally efficient insulating fire bricks. Their products are known for superior insulation properties, exceptional heat resistance, and excellent durability under extreme temperatures.

Conclusion

In summary, insulating fire bricks are essential components in high-temperature applications, providing both heat retention and energy efficiency. Making your own bricks can be a cost-effective and rewarding experience if you follow the proper steps and quality checks. However, for larger projects or when the highest standards are required, turning to professional insulating fire bricks suppliers like WAM ensures consistent quality and performance.

Experimenting with different materials and ratios can help improve the insulation properties of your fire bricks, making them more suited to your specific needs. Whether you’re creating your own bricks or sourcing from a trusted manufacturer, insulating fire bricks will continue to be an invaluable tool in heat management and energy conservation.
