Refractory bricks are specially designed materials capable of withstanding extremely high temperatures, making them essential in industries that operate at elevated heat levels, such as metallurgy, cement production, and glass manufacturing. These bricks play a crucial role in maintaining the integrity and performance of furnaces, kilns, and other heat-intensive equipment.
Refractory bricks, also known as fire bricks, are heat-resistant materials used in environments where high temperatures and thermal stress are prevalent. Unlike regular bricks, refractory bricks do not easily deform, crack, or break under intense heat, making them suitable for lining furnaces, boilers, chimneys, and other industrial equipment that need to operate under extreme conditions. Their ability to withstand these harsh environments makes them indispensable for various industrial processes.
Refractory bricks are made from a variety of raw materials that can endure extreme heat. Common materials include:
Clay: Clay bricks are the most common type and are made primarily of aluminum silicate.
Silica: Silica bricks are made from high-purity silica and are ideal for applications in glassmaking.
Alumina: These bricks are made from aluminum oxide and offer high-temperature resistance and strength.
Magnesia: Made from magnesium oxide, these bricks are highly resistant to alkaline environments.
Carbon: These are used in specialized applications due to their high thermal conductivity.
The composition of these materials directly influences the performance and heat resistance of the bricks. For instance, alumina-based bricks are better for higher temperature environments than clay bricks.
This article explains in detail “What are diffenert refractory bricks made of”. Click to read the details.
Refractory bricks come in several types, each suited for specific applications. These include:
Acidic Refractory Bricks: Made from silica, these bricks are resistant to acidic slags and are used in applications like glass furnaces and kilns.
Basic Refractory Bricks: Typically made from magnesia or lime, these are highly resistant to alkaline environments and are used in steel-making furnaces.
Neutral Refractory Bricks: Made from alumina or chromite, these bricks are versatile and can be used in both acidic and basic environments.
Insulating Bricks: These are lightweight, with lower density and high insulating properties, used to reduce heat loss in kilns and furnaces.
Each type is designed to perform optimally in specific high-temperature environments, based on the chemical composition and thermal properties.
The density of refractory bricks is a key property that affects their insulation capabilities and overall strength. High-density bricks typically have better mechanical strength and are used in structural applications where resistance to physical stress is necessary. On the other hand, low-density bricks are more commonly used as insulating materials to prevent heat loss.
The density of refractory bricks can vary widely depending on their composition. For example:
High-density bricks: Typically range from 2.5 to 3.0 g/cm³.
Low-density bricks: Can range from 1.0 to 2.0 g/cm³.
Choosing the right density depends on the specific requirements of the application, such as thermal insulation or structural support.
Compressive strength refers to the ability of a material to withstand axial loads without failing. For refractory bricks, compressive strength is crucial because these materials are often subjected to mechanical stress and high temperatures. The strength of a refractory brick can be affected by its composition, density, and firing process.
Typically, refractory bricks have high compressive strength, allowing them to endure the weight and stress of the surrounding materials and equipment. Compressive strength is measured in megapascals (MPa), and the values can vary based on the brick’s type:
Fireclay bricks: 20-40 MPa.
High alumina bricks: 60-80 MPa.
Magnesia bricks: 90 MPa or higher.
The manufacturing process of refractory bricks is complex and requires precision to ensure high quality. Here’s an overview of the process:
Raw Material Selection: The right raw materials, such as alumina, silica, or magnesia, are chosen based on the required properties of the brick.
Preparation and Mixing: The raw materials are crushed and mixed to achieve the desired consistency and composition.
Shaping: The mixture is molded into the desired brick shapes using various methods, such as pressing or extrusion.
Drying: The shaped bricks are dried to remove moisture before they are fired in a kiln.
Firing: The dried bricks are fired at extremely high temperatures (usually between 1,300°C and 1,800°C) in a kiln to develop their strength and heat resistance.
Cooling: After firing, the bricks are gradually cooled to prevent cracking due to thermal shock.
The entire process must be carefully controlled to ensure the bricks have the necessary strength and thermal resistance.

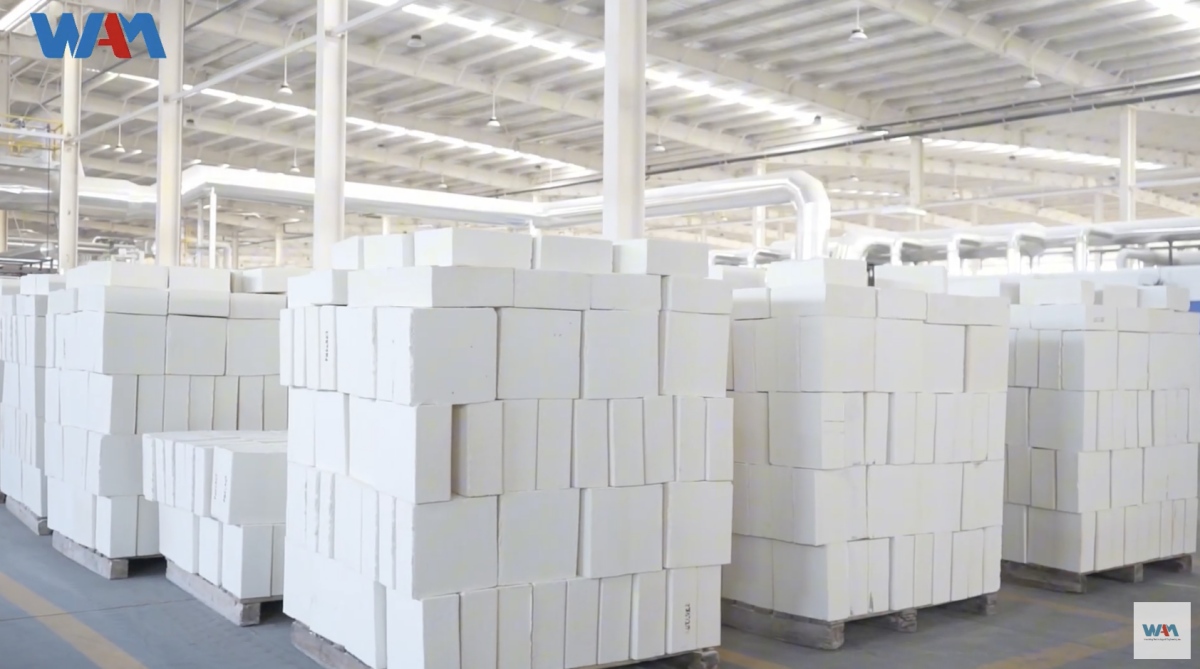

(WAM New Insulating Fire Bricks Production Line.)
Making refractory bricks is a meticulous process that involves several key steps:
Prepare Raw Materials: Choose materials like clay, silica, or alumina, depending on the intended application.
Mix the Ingredients: The raw materials are finely ground and mixed with a binder to form a malleable mixture.
Form the Bricks: The mixture is molded into brick shapes using compression or extrusion.
Dry the Bricks: After shaping, the bricks must be dried slowly to avoid cracking.
Fire the Bricks: The dried bricks are fired in a kiln at high temperatures for several hours to achieve their final hardness and heat resistance.
Cooling: Once firing is complete, the bricks are gradually cooled to room temperature.
This process requires precise control over temperatures and timings to ensure that the bricks perform optimally.
This article explains in detail “How to Make Refractory Bricks”. Click to read the details.
Refractory bricks are essential materials in industries that operate under extreme heat conditions. They are made from various materials like silica, alumina, magnesia, and clay, each contributing unique properties to the bricks' performance. Whether used in furnaces, kilns, or other high-temperature applications, refractory bricks play a vital role in ensuring safety, energy efficiency, and long-term durability.
The manufacturing process is complex and involves careful selection of materials, shaping, firing, and cooling to produce bricks that can withstand high temperatures and stress. Understanding the different types, properties, and production processes of refractory bricks helps in selecting the right product for specific industrial needs.
WAM is a company specializing in the research, development, production and sales of high-grade mullite lightweight refractory materials, committed to providing customers with high-quality refractory and thermal insulation solutions. Our main product is insulation bricks. In addition, we also provide a variety of matching lightweight fire mud, lightweight insulation series castables, lightweight aggregates and other refractory and thermal insulation products.
WAM's insulation bricks have significant advantages, including:
Low thermal conductivity: Uniform pore distribution gives it excellent thermal insulation performance, low thermal conductivity, and effective energy saving.
Low impurity content: Low impurities in low-temperature melts of iron and alkali metals ensure the high quality of the product.
High strength: It has high hot compressive strength and good volume stability to ensure long-term stability.
High dimensional accuracy: Through mechanical processing and molding, it has high precision and can be processed into special shapes according to needs, reducing masonry joints and speeding up construction.
Low heat capacity: While absorbing a large amount of heat, the brick body stores less heat, and the energy-saving effect is significant.
Choose WAM, you will get an efficient, stable and energy-saving refractory material solution. We look forward to cooperating with you, welcome to consult us at any time!
